Recessed Floor Box for Concrete or Wood, Hinged Lid, 2 Decora, Stainless Steel
| Q&A$452.00
Free shipping on orders over $99

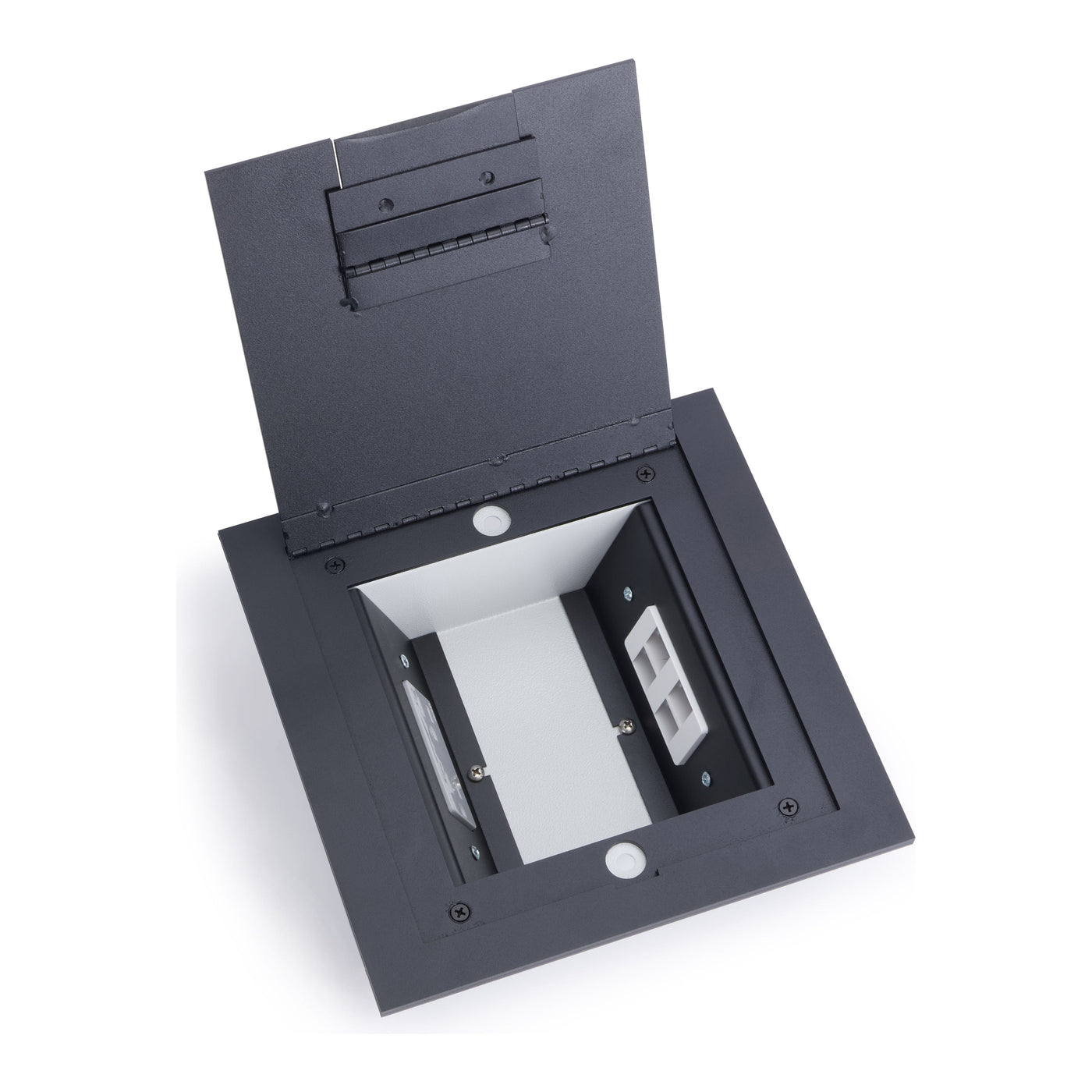

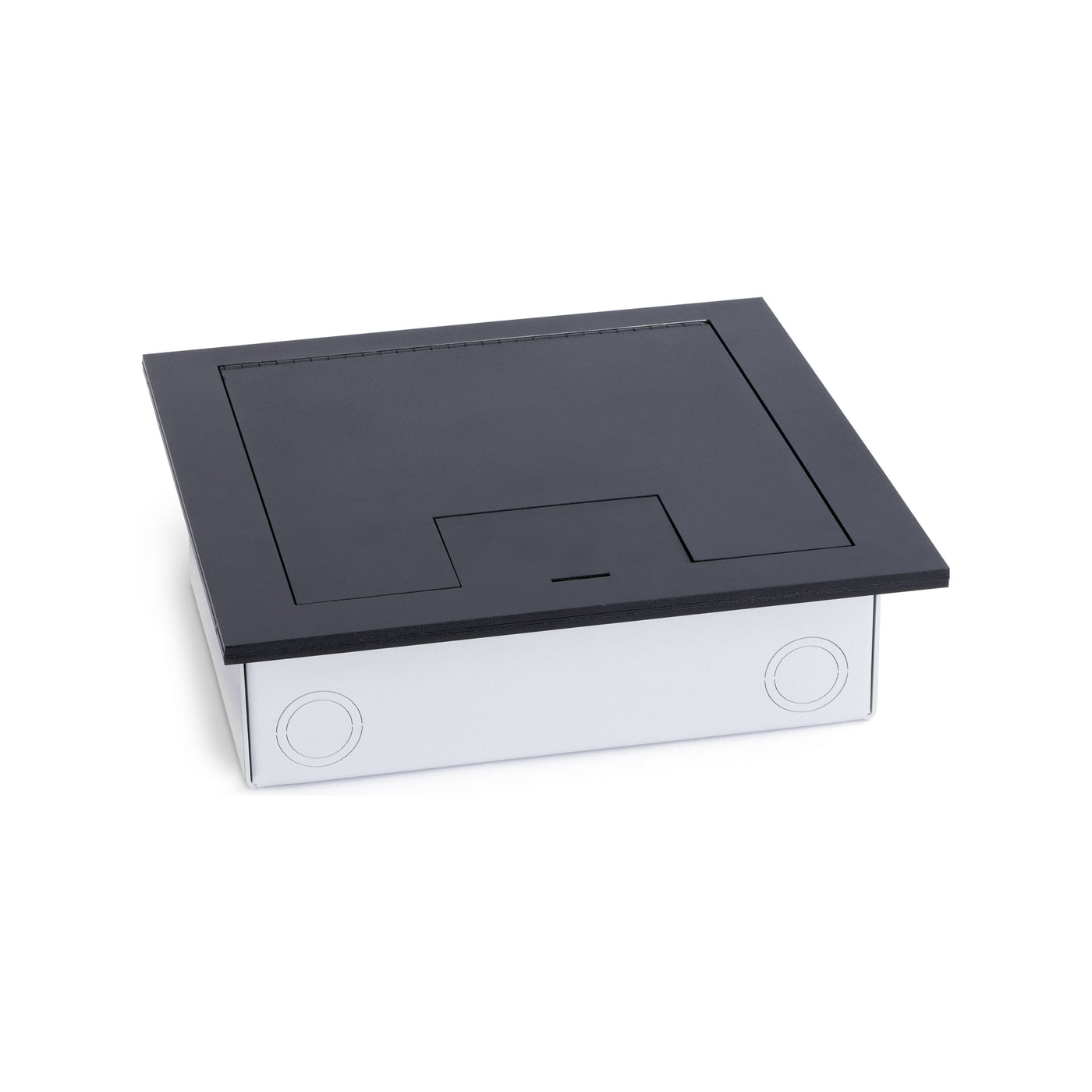

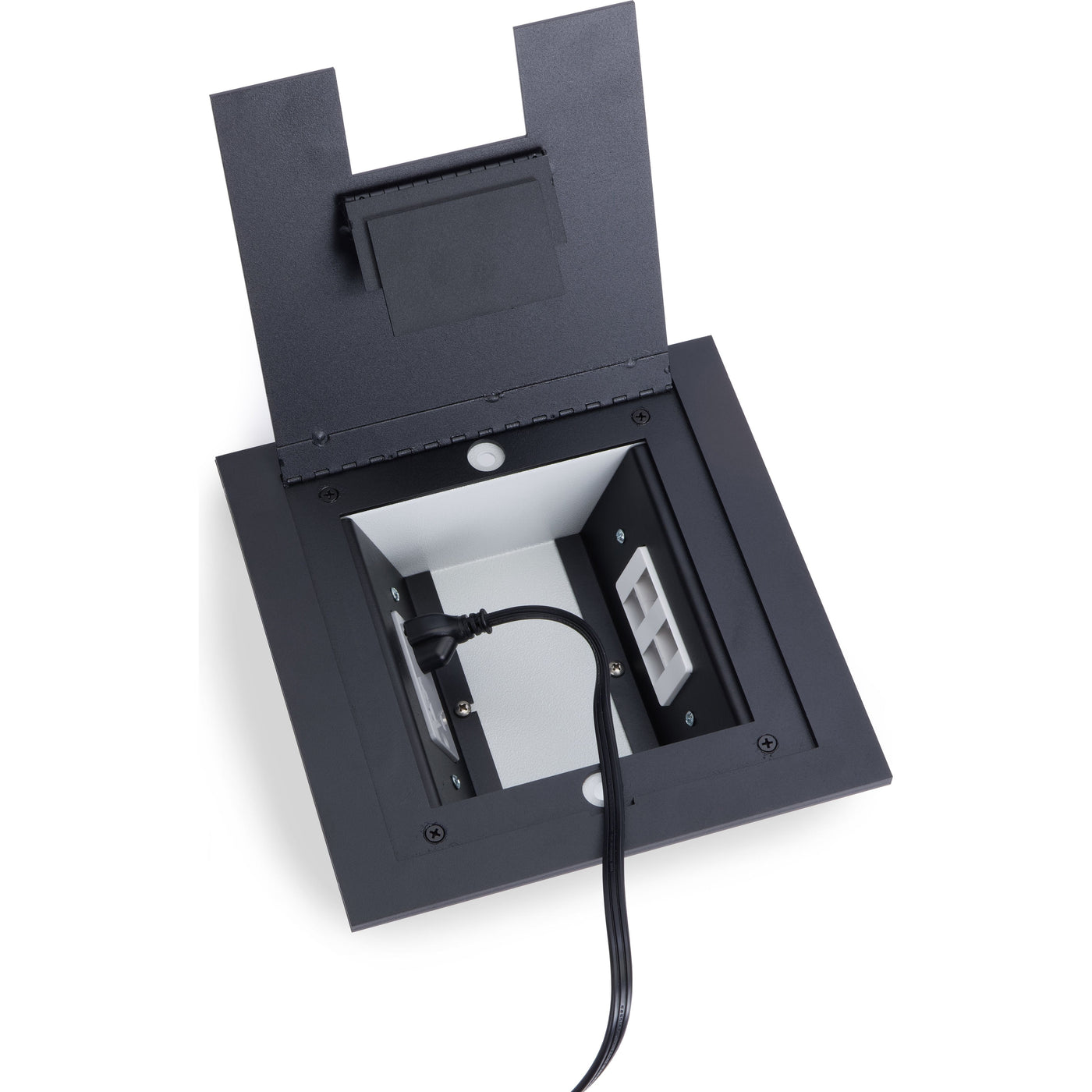

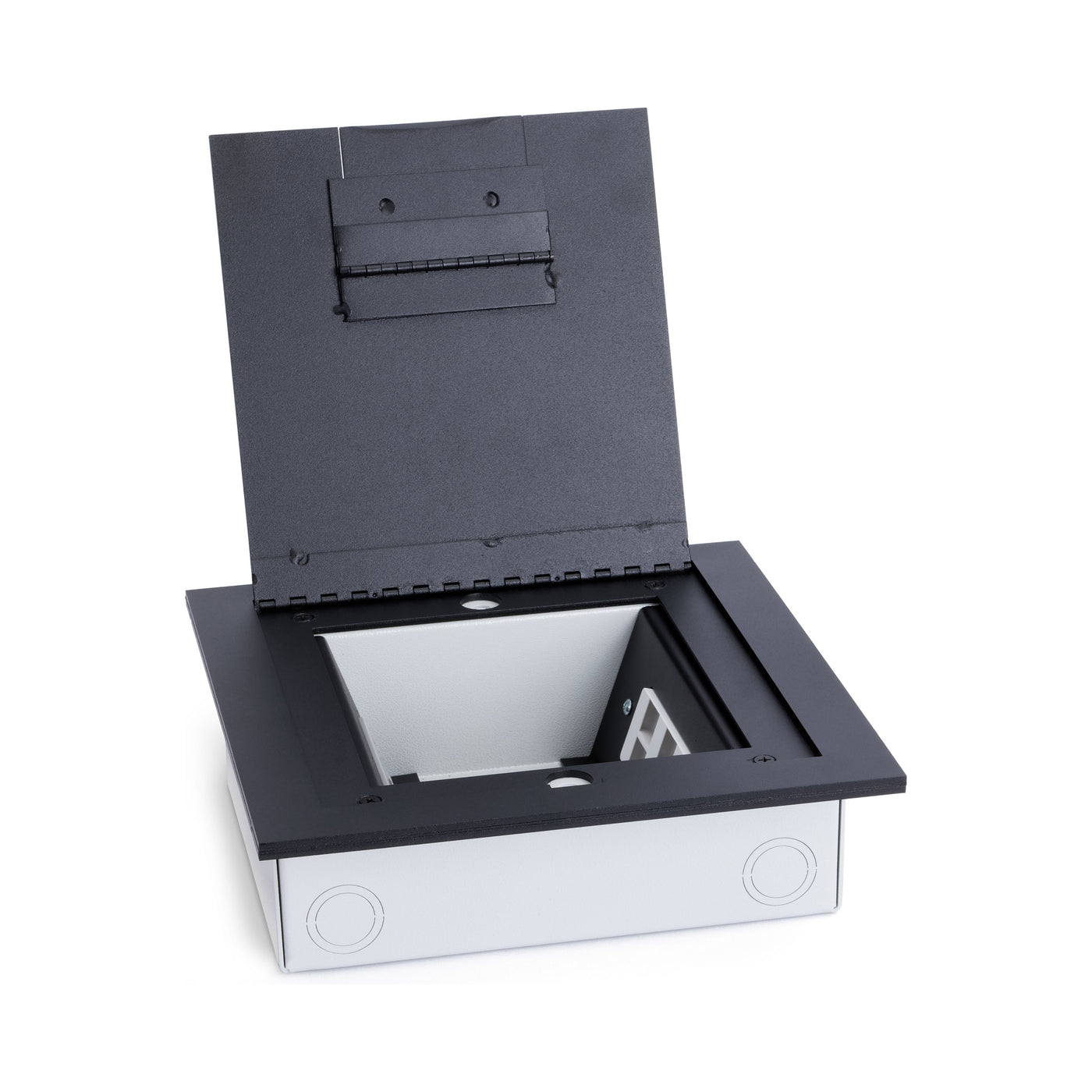

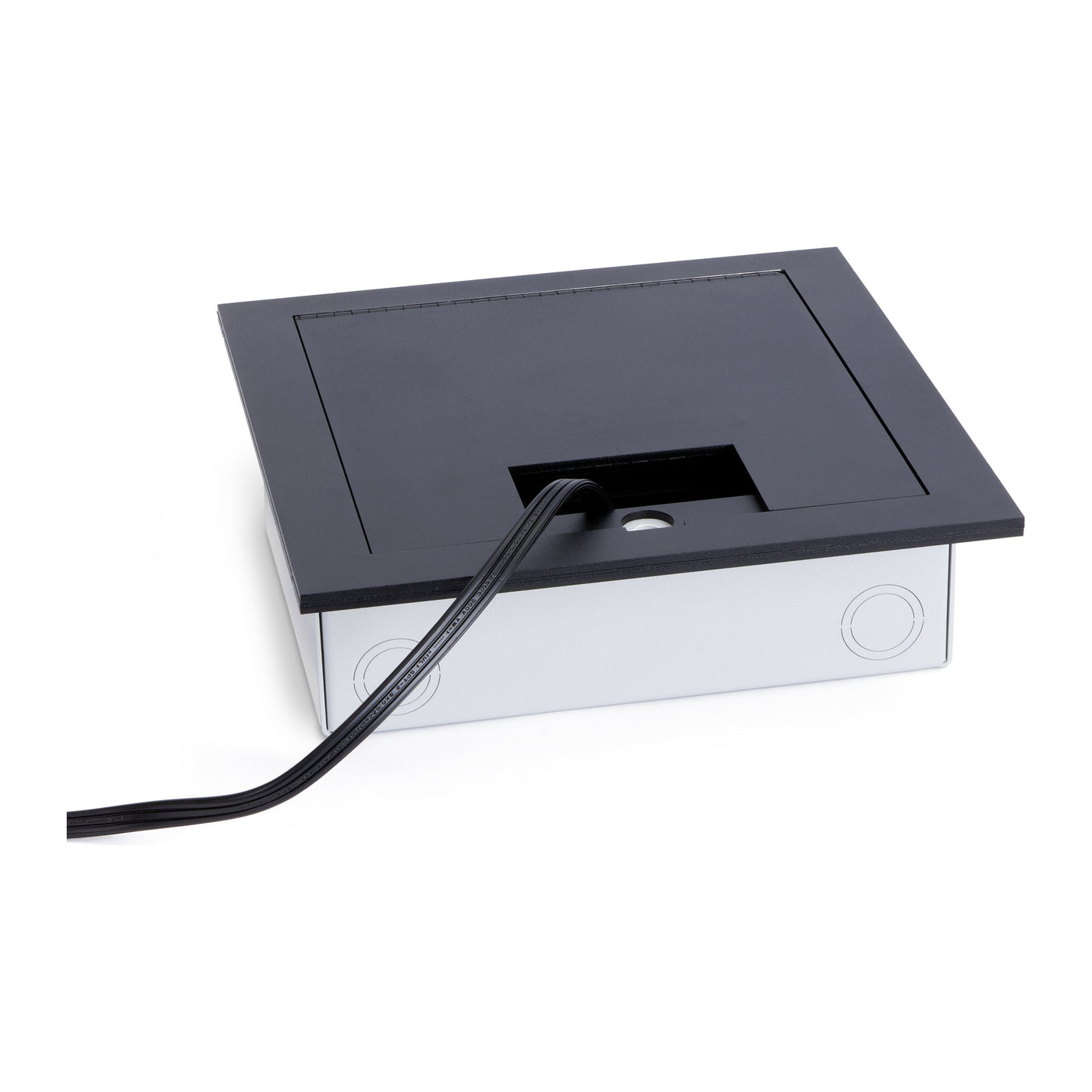

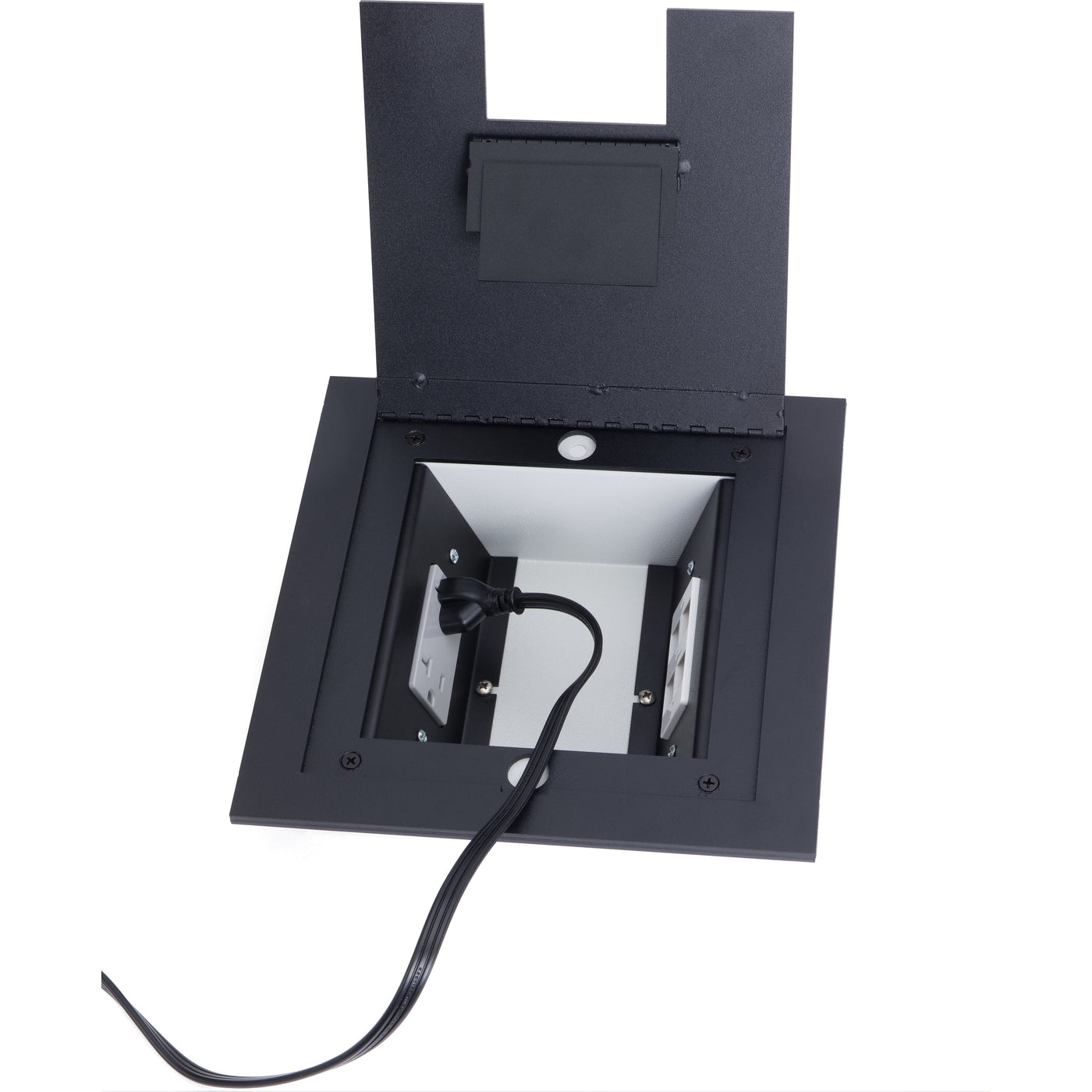

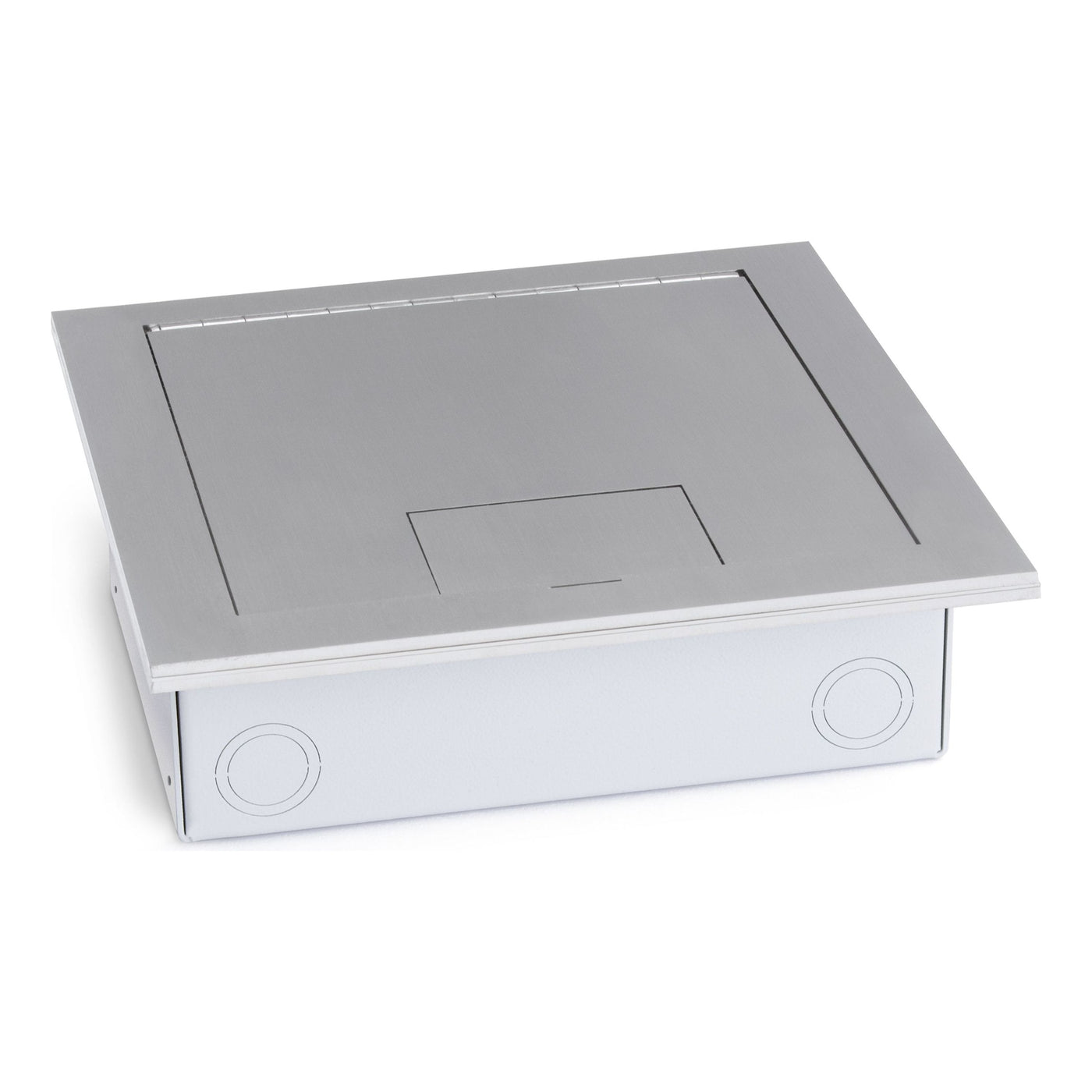

The Lew Electric 2200-SS is a versatile floor box that can be installed in a raised access floor, wood floor, or concrete. Inside the box you will find a decora opening on each side, the box has a built-in divider for power and data. The steel lid is an attractive and durable real stainless steel with a hinged lid opening, as well as a small hinged lid opening for cable pass-through. There is a rubber gasket around the inside perimeter of the cover to help keep liquids out. We are showing the black images for reference, this will ship as stainless steel that you see in the first picture.
Easy to Install in Raised Access, Wood, or Concrete Floors

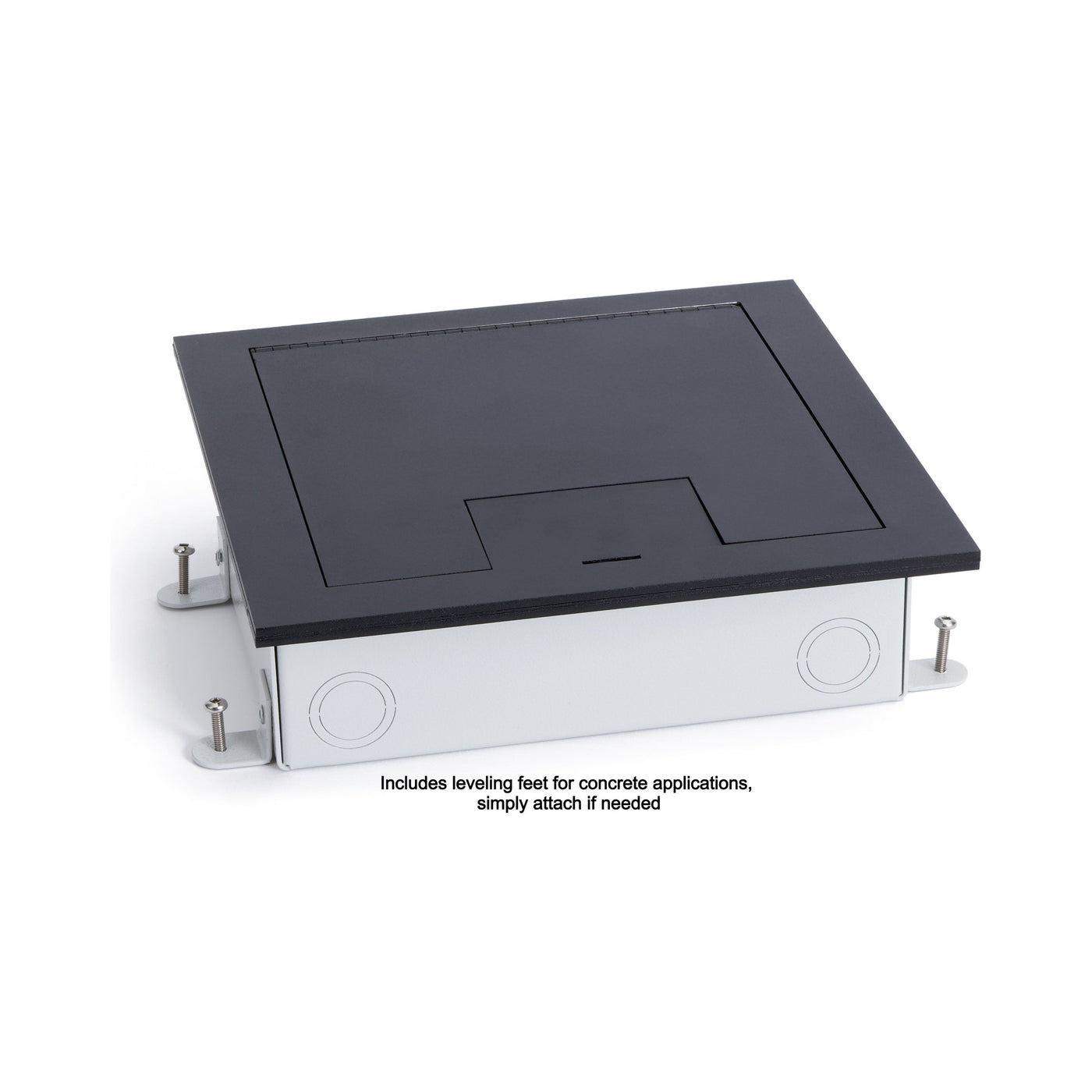

The stage pocket floor box is a perfect choice for any raised access floor, wood floor, or even concrete. Install in a raised access floor, screw into a wood surface, or set into concrete. For concrete there are 4 leveling feet included that attach to each corner of the box, there is also a construction cover to keep the box clean during construction. The floor box ships with the back box, cover, leveling feet, construction cover, blank plates for any unused spots, and screws to attach the cover to the box. The galvanized steel back box is 8 3/4" x 6" and 2.75" deep, and the cover size is 9 1/4" x 9 1/4" and .27" thick. There are eight 1/2" knockouts for power and/or data connectivity.
The box is ETL listed for the United States and CSA approved for Canada.
Customizable to Meet Your Needs

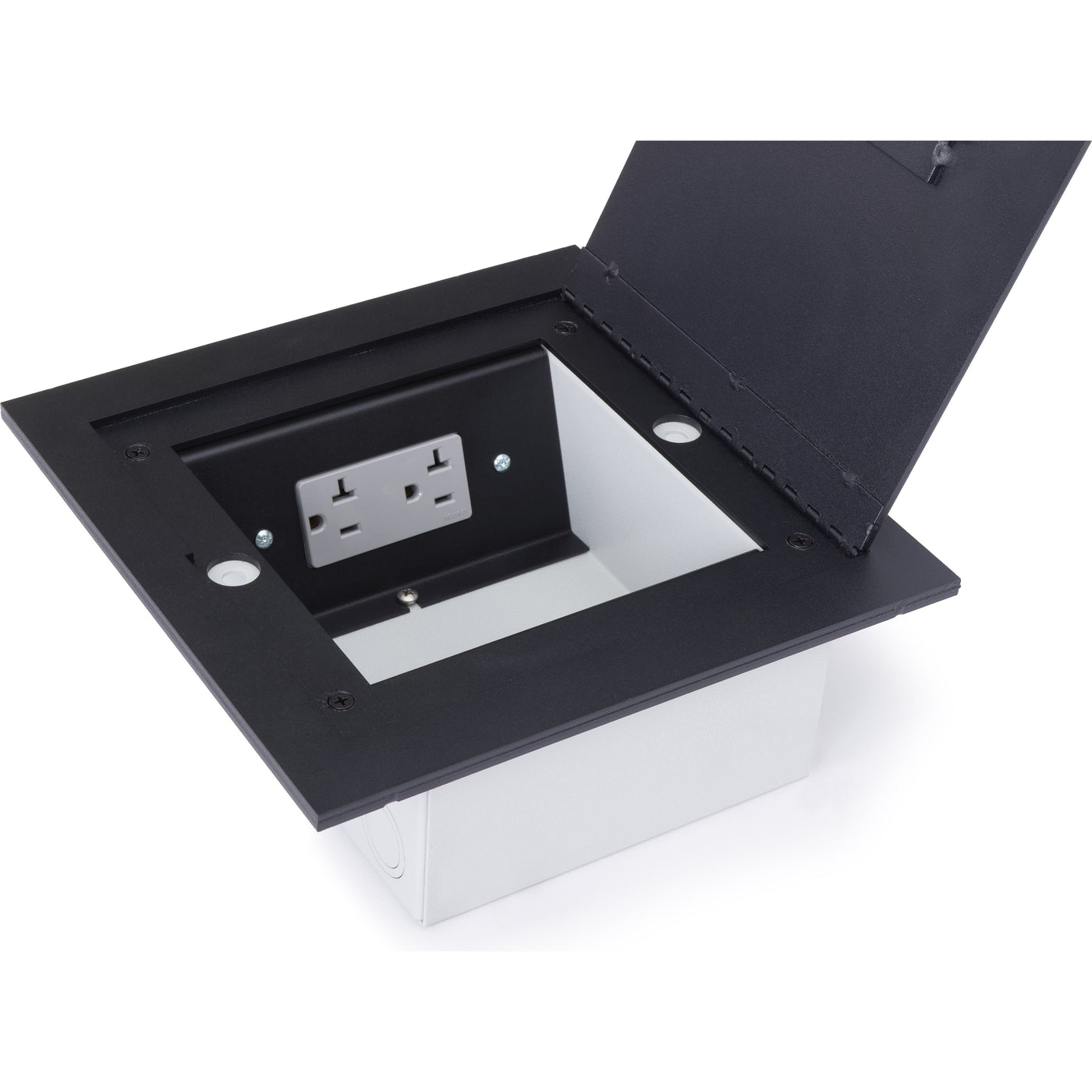

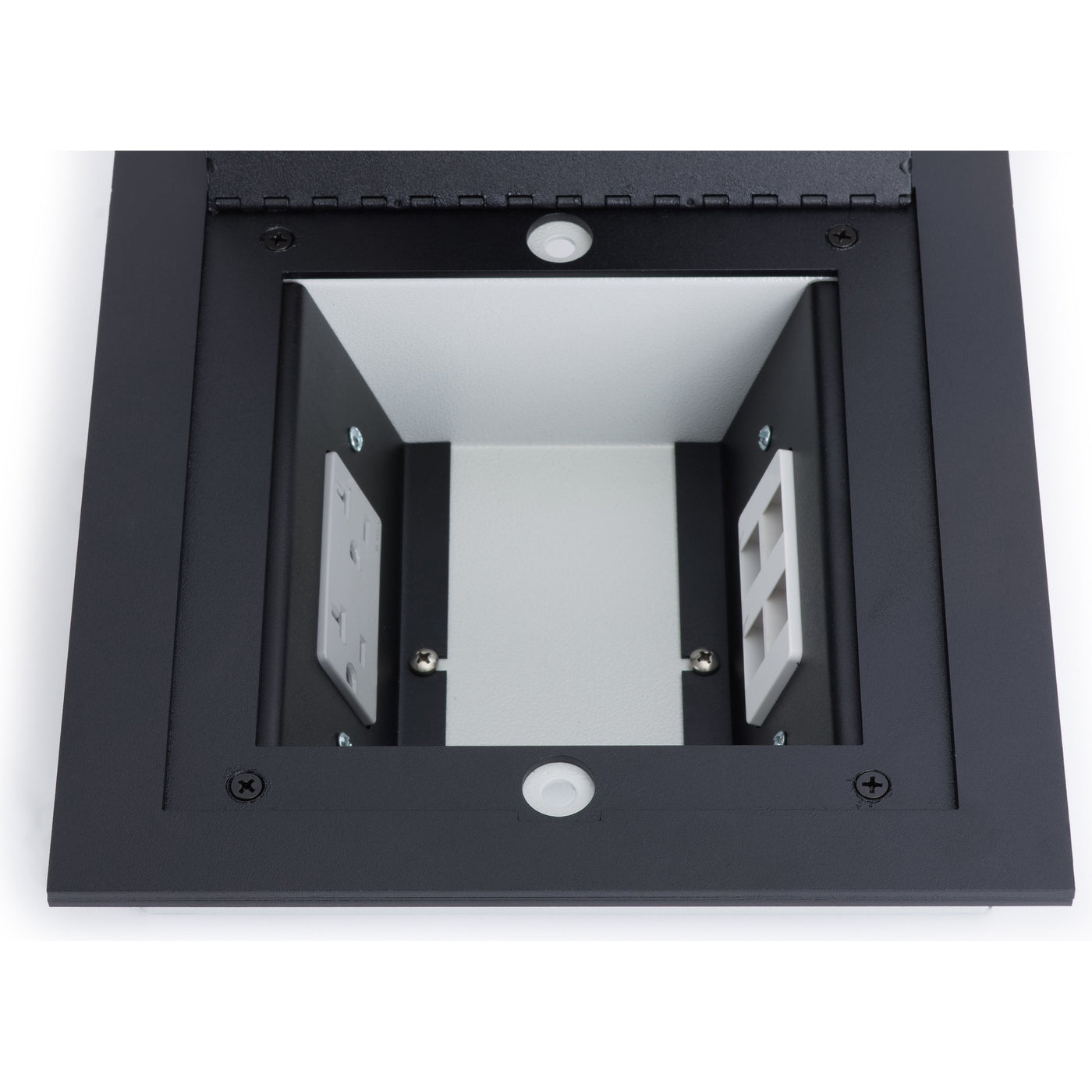

Inside the floor box, you will find 2 decora openings to add in your power or data connections. (Outlet and data plates in pictures not included)
Data Options:
6-port keystone plate, CLICK HERE
Cat6 keystone connector, CLICK HERE
Cat6 shielded keystone connector, CLICK HERE
HDMI keystone connector, CLICK HERE
USB-C keystone connector, CLICK HERE
USB-A 3.0 keystone connector, CLICK HERE
Blank keystone cover, CLICK HERE
Power Options:
GFCI outlet, CLICK HERE
GFCI/AFCI outlet, CLICK HERE
Duplex outlet, CLICK HERE
USB A-A outlet, CLICK HERE
USB A-C outlet, CLICK HERE
USB C-C outlet, CLICK HERE
Specifications
- Top: Stainless steel
- Openings inside: 2 decora
- Outlets and data plates not included
- Hinged lid with cable pass-thru door
- Eight 1/2" knockouts
- Construction: 16 gauge galvanized steel
- Box size: 8 3/4" L x 6" W x 2 3/4" H
- Cover size: 9 1/4" L x 9 1/4" W
- Cutout size: 8 3/4" x 6"
- Cover thickness: .27"
- Weight: 6lb
- CSA approved
- ETL listed
- 1 year warranty
Installation Manual (PDF)
Top: Stainless steel
Openings inside: 2 decora
Outlets and data plates not included
Hinged lid with cable pass-thru door
Eight 1/2" knockouts
Construction: 16 gauge galvanized steel
Box size: 8 3/4" L x 6" W x 2 3/4" H
Cover size: 9 1/4" L x 9 1/4" W
Cover thickness: .27"
Cutout size: 8 3/4" x 6"
Weight: 6lb
CSA approved
1 year warranty
