Quick Install Floor Plate, No Box, 15A Outlet, Screw Plug, Dark Bronze

  |   Q&A (0)

$82.00

Free shipping on orders over $99

Part #: RRP-1-DB
Vendor: Lew Electric
In Stock!
Ships same business day from Boise, ID if ordered by 6pm EST
Ship To: 43201
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

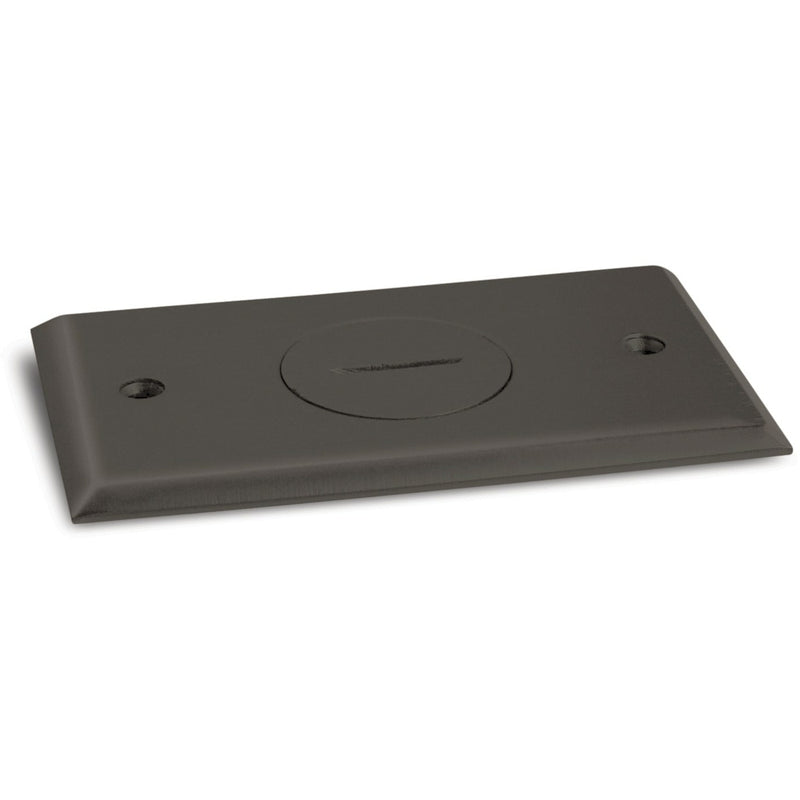

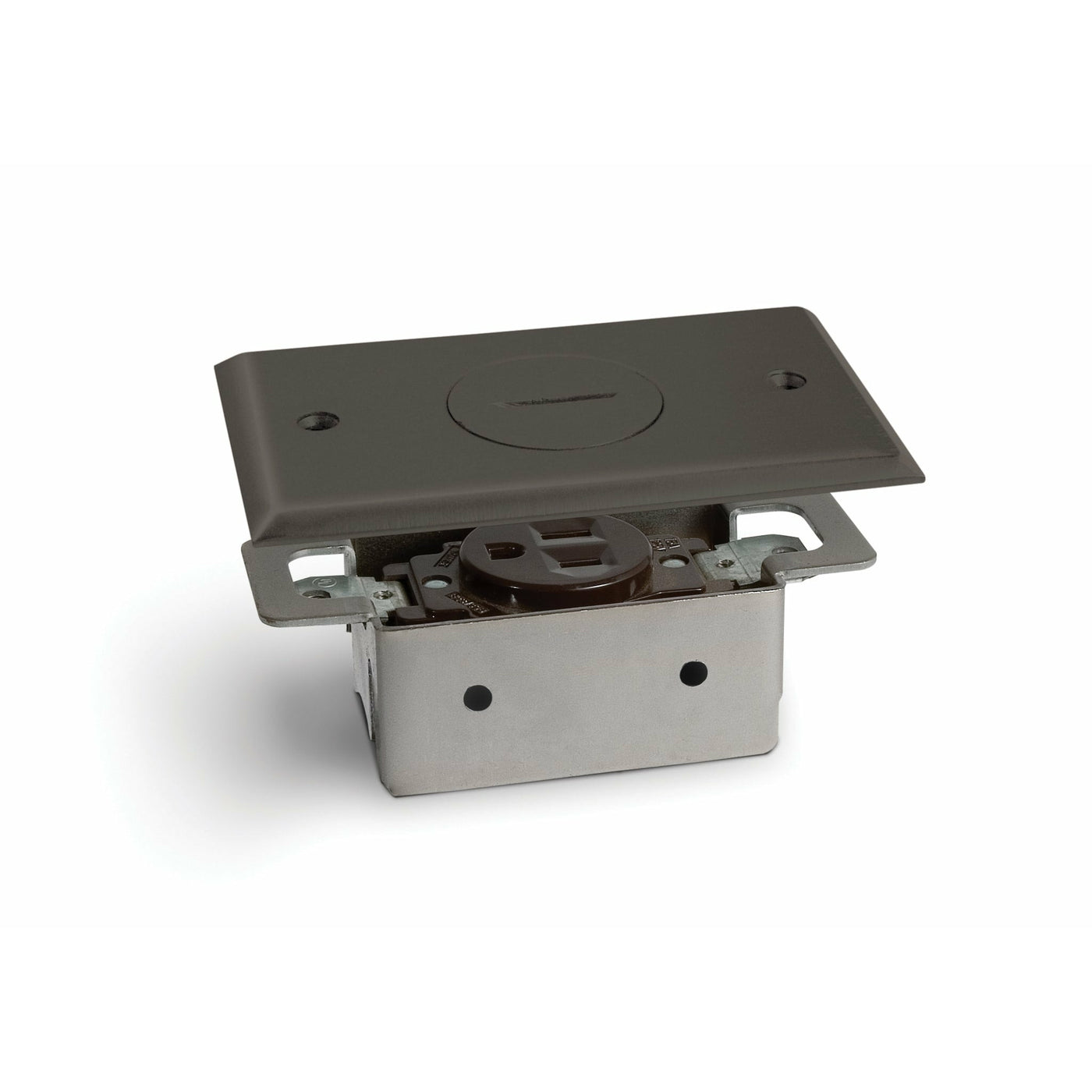

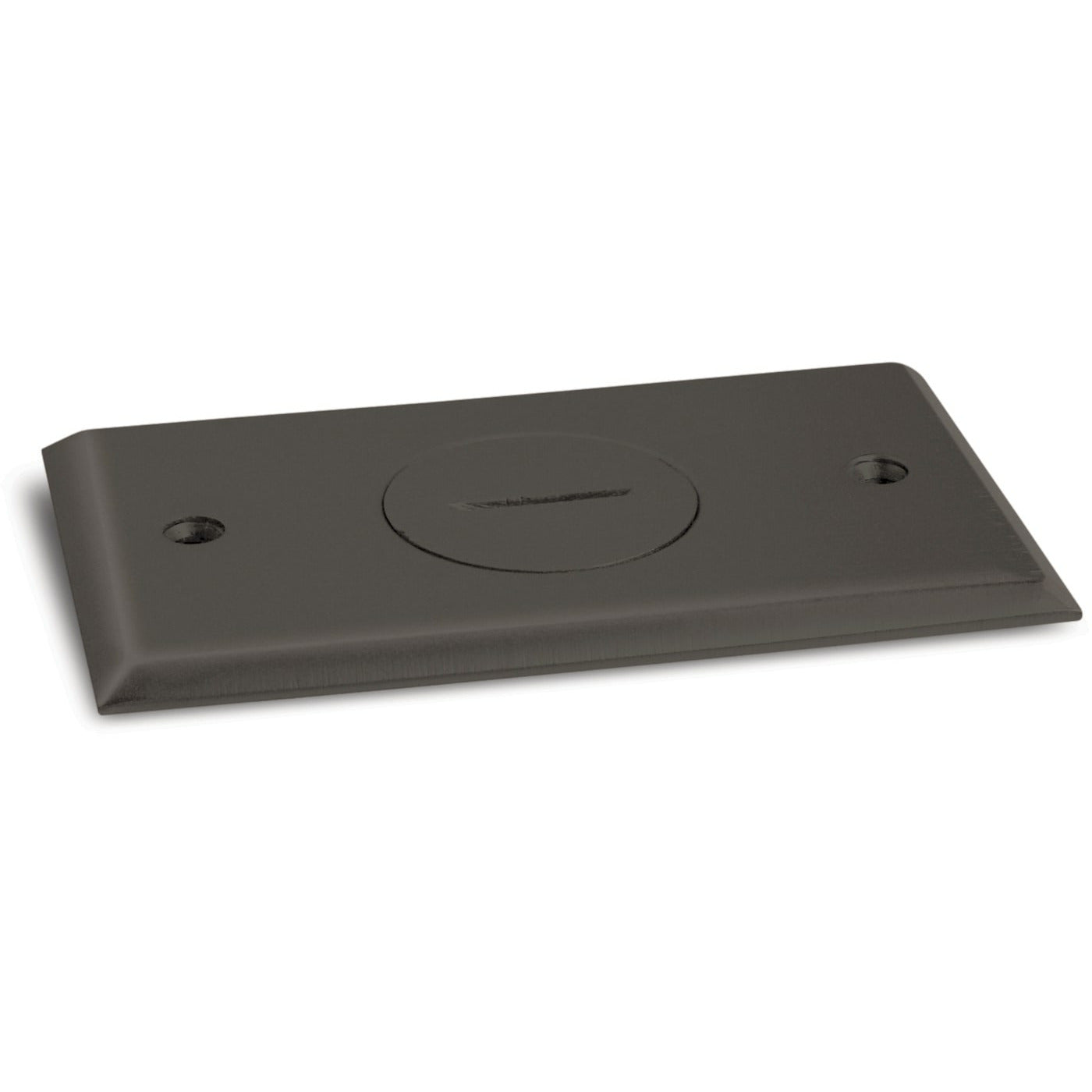

The Lew Electric RRP-1-DB is a recessed floor plate with a dark bronze plated cover. The back box is not included, use with an approved 2" x 3" box with a depth of 3.5". Inside the floor box is a single 15A outlet, the plug is tamper proof. The sleeve in the box is adjustable up to 3/4" to accommodate any floor making installation a snap, screws are included to attach the plate to the receptacle box. The box may be attached directly to the floor or routed 3/4" into a finished floor. The box features a single water tight close up screw plug, there is also a durable 1/16" neoprene rubber gasket that goes between the receptacle and plate. The receptacle is UL listed and meets heavy duty requirements for display receptacles. This floor box is a simple and economical solution to provide your power in a small and attractive plate.

Plate: 1/8" dark bronze
Outlet: One 15A tamper proof
1 watertight 1.5" screw plug
Must supply own back box
Adjustable up to 3/4"
Attach to floor or route 3/4"
Includes 1/16" neoprene rubber gasket
Outlet UL # E237396
Meets NEMA WD1-1983 requirement
Several knockouts for conduit
Includes plate screws
Cover size:  4 5/8" x 2 7/8"
Cutout size: Can't exceed 2 1/8" x 3 1/2"
Warranty:  1 year
